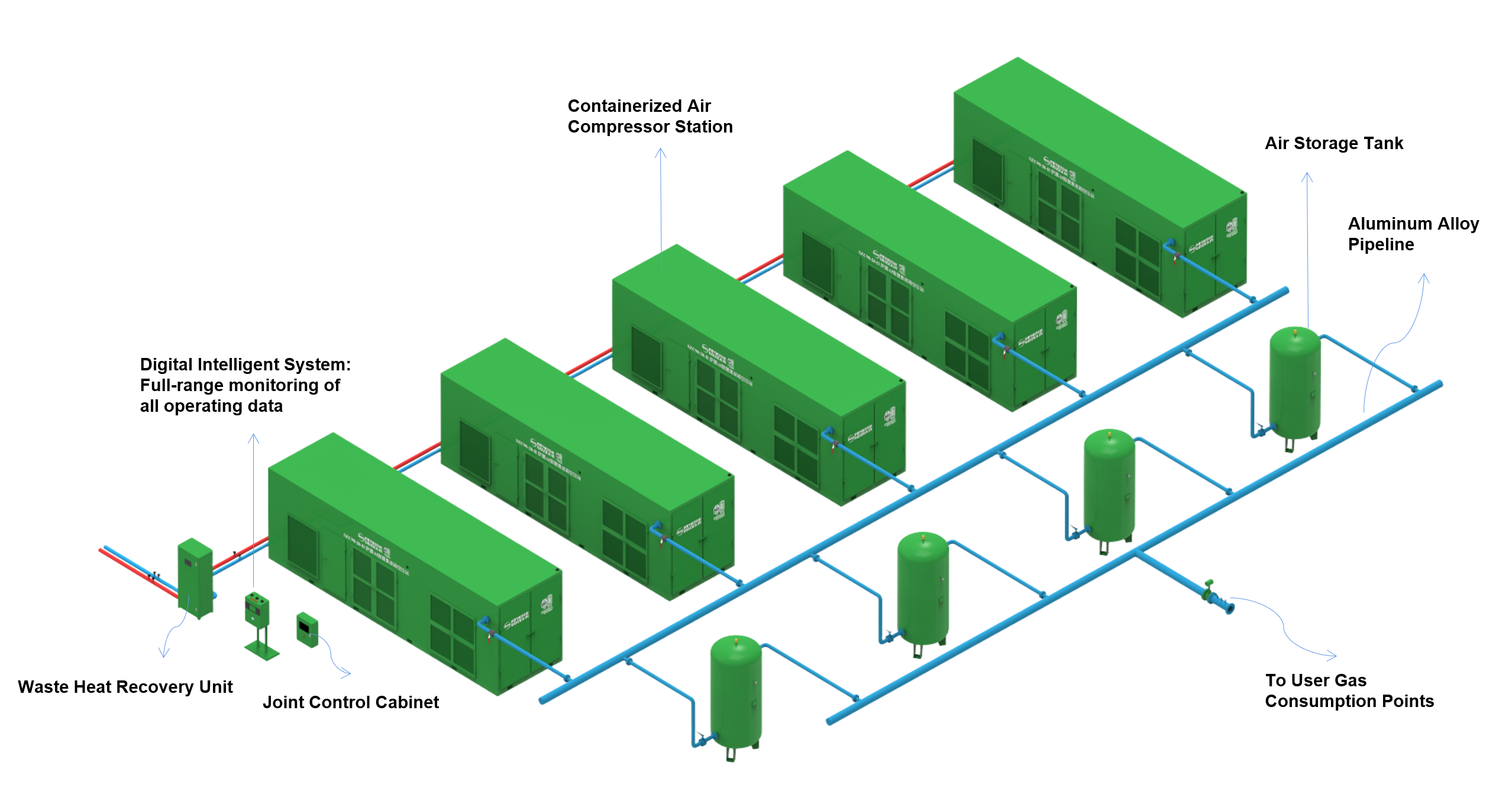

Digital Intelligent System for Seize Containerized Air Station
Containerized Integrated Air Compressor Station
Plug and play integrated air source system, built-in complete air compression processing equipment
Standard ISO Container Air Station
Adopt high-strength sealed container shell, windproof, rust-proof and shock-resistant, adapt to outdoor open-air harsh working environment. Integrate screw host, dryer, filter, gas storage tank and intelligent control system in the box, no need to build workshop, directly connect power supply to put into production.
Power range: 0.25 ~ 4.0MPa | Air flow: 0.5 ~ 150 m³/min

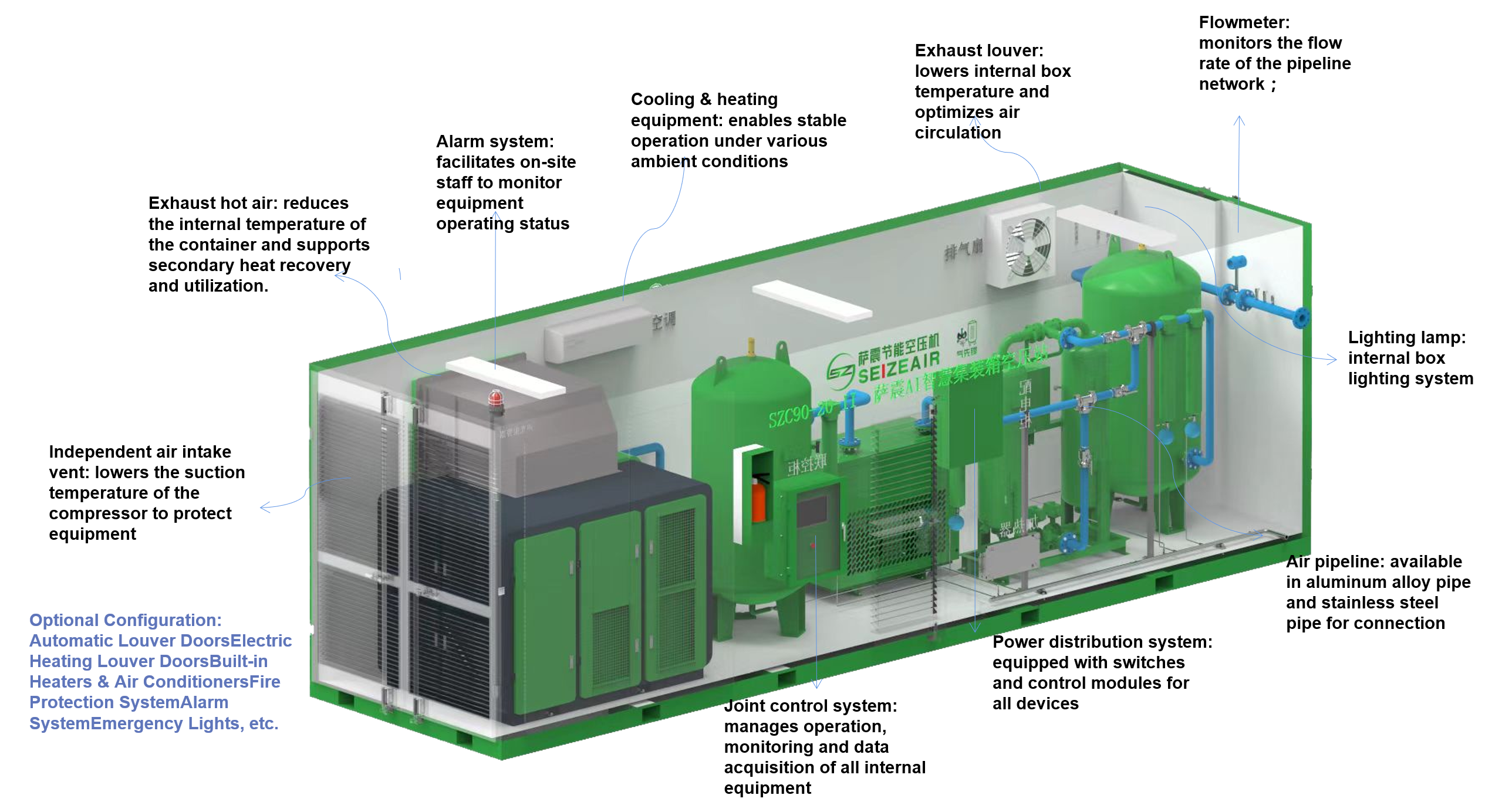

Product Internal Structure Diagram
Marked layout of each component inside the container air station
Internal Structure & Real Shot Display
Complete internal layout, independent heat dissipation channel, standardized piping layout

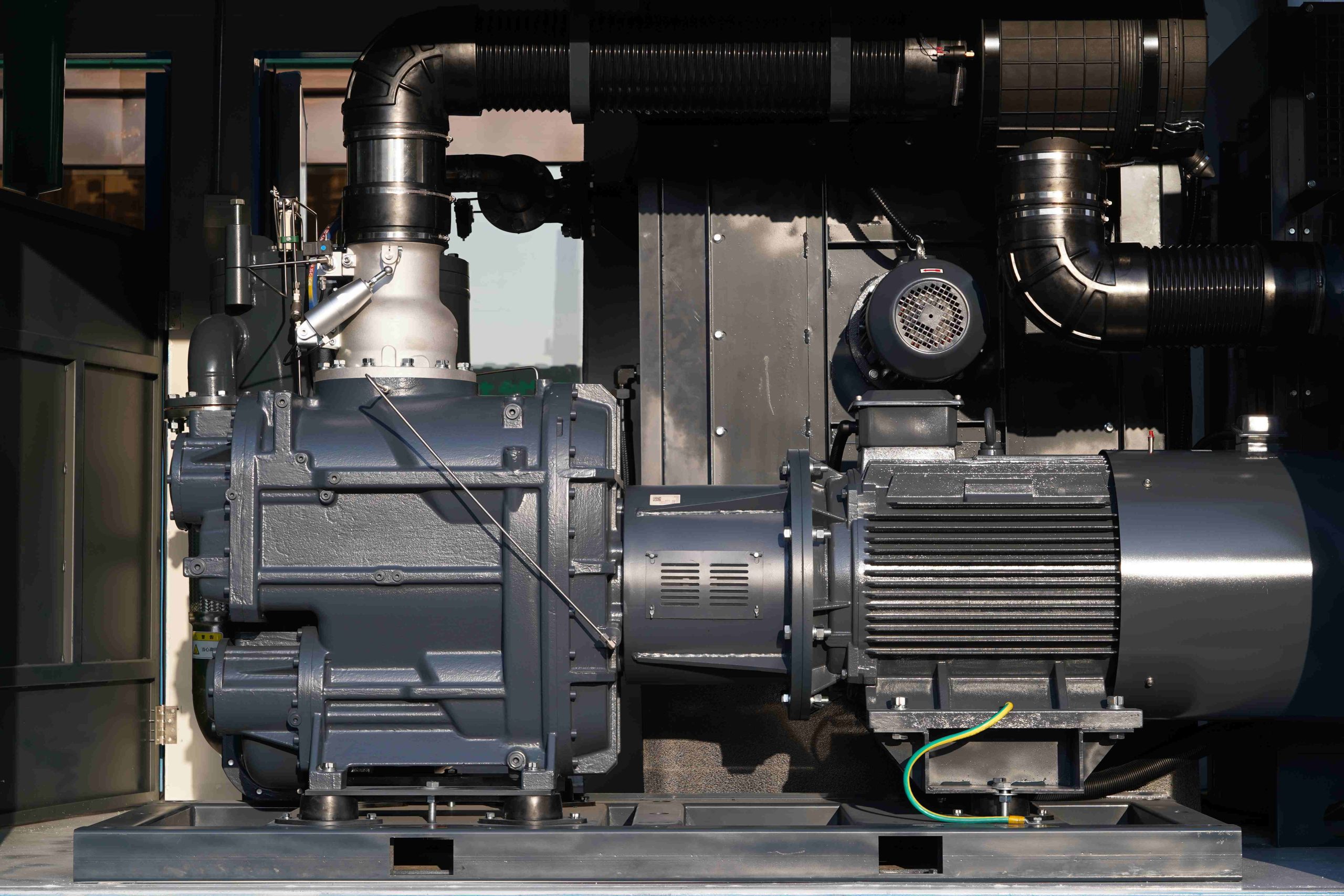

Centralized layout of main engine, stable operation & low vibration

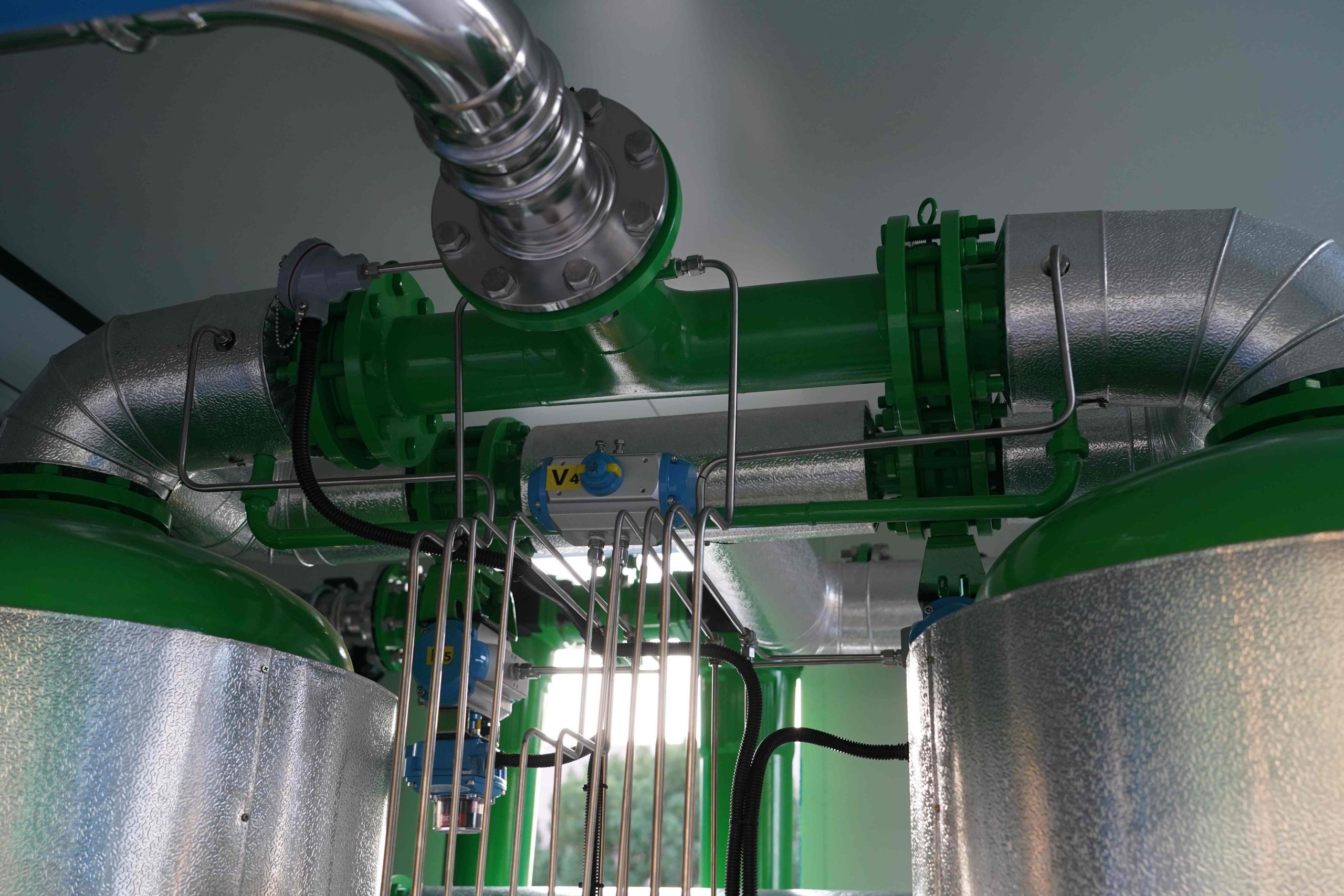

Anti-corrosion aluminum alloy pipeline, smooth air delivery & low pressure loss

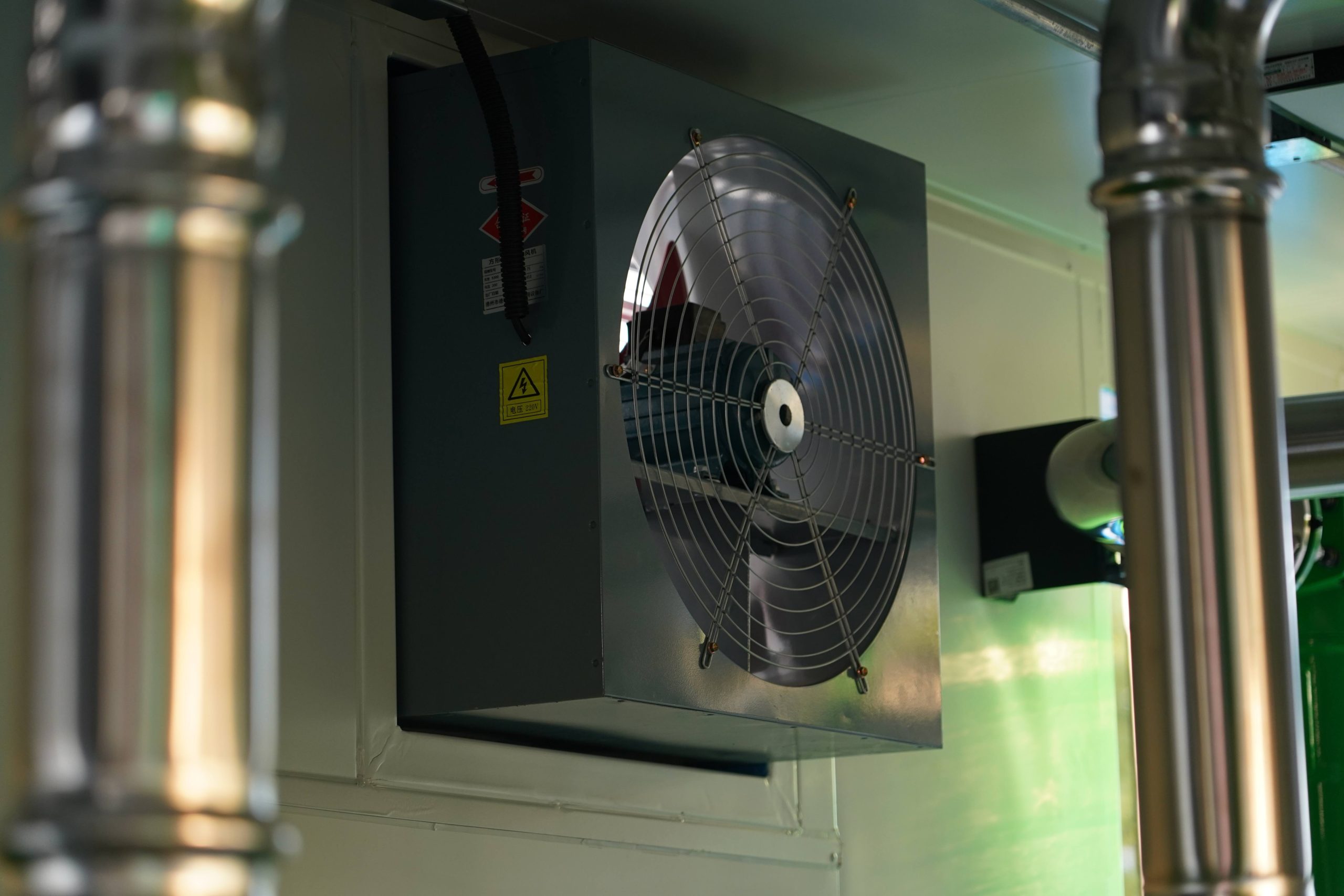

Automatic louver heat dissipation system, stable temperature inside the box

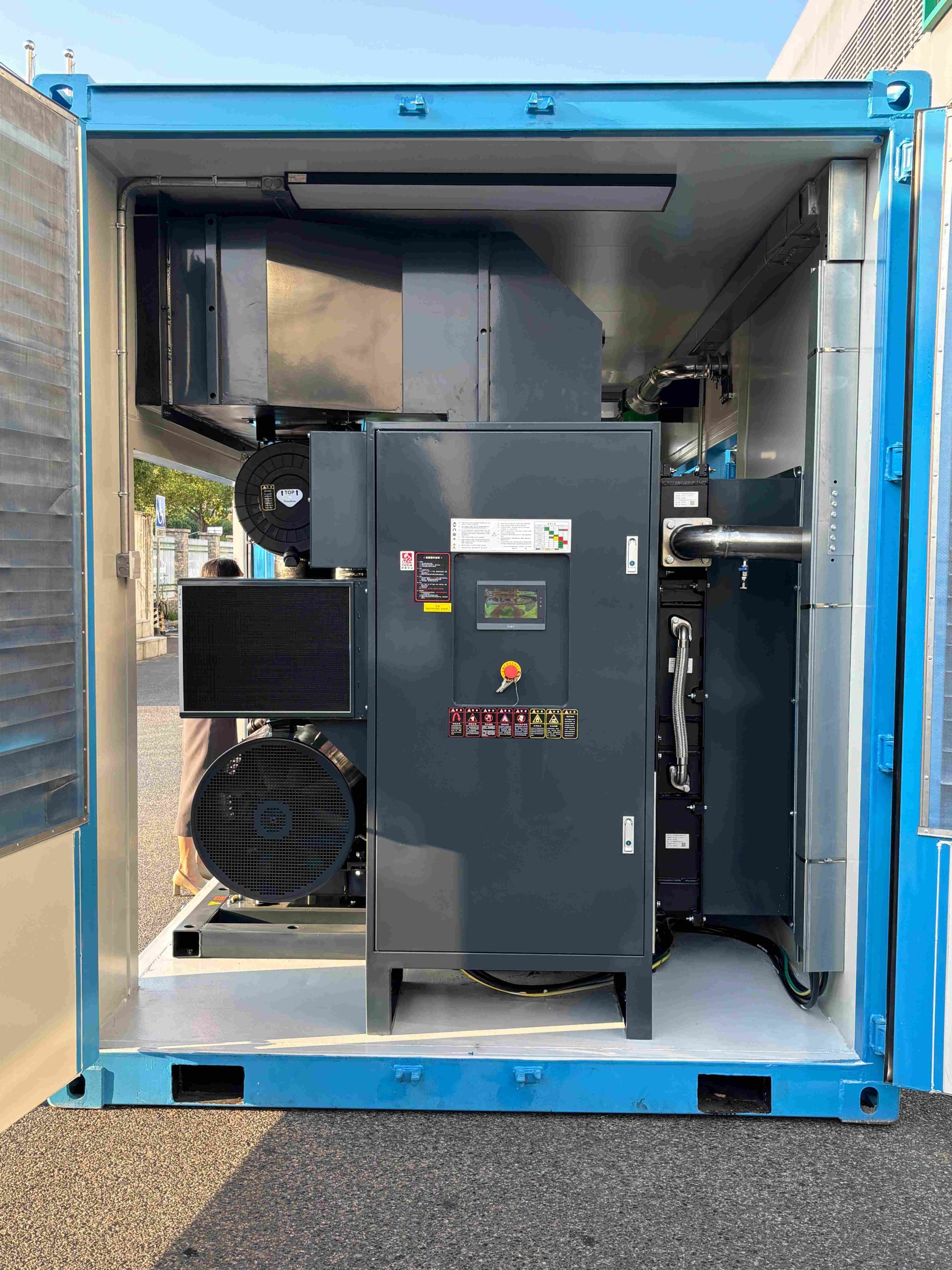

Integrated intelligent control cabinet, support remote data viewing & alarm
Safety & Environmental Adaptation Solution
Dual safety protection + wide temperature operation design for global different regions
Fire Protection Configuration
Temperature Adaptability System
Matching Post-processing Equipment
One-stop supporting configuration to meet different air purity requirements

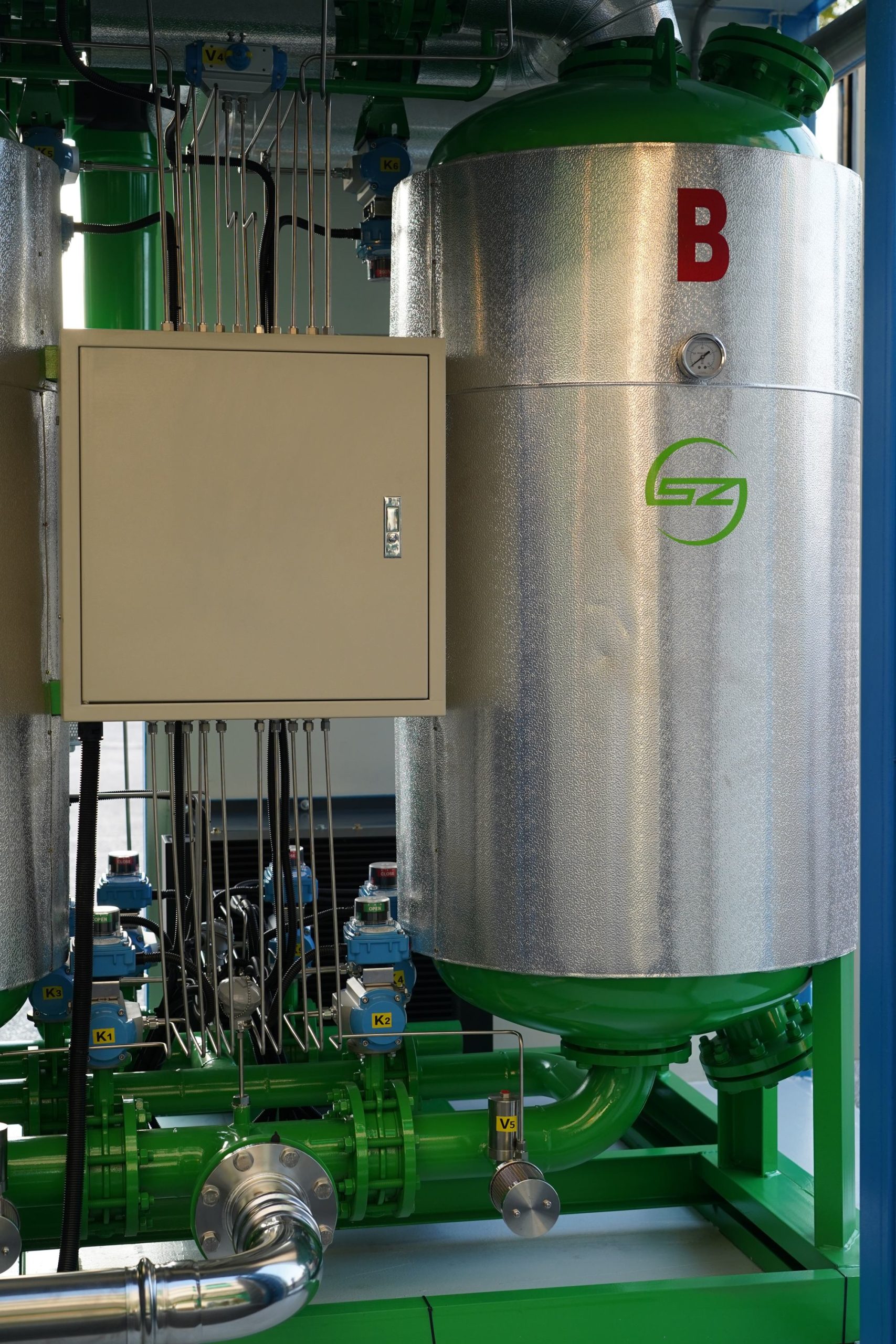

Air Storage Tank
Stable air pressure, buffer air flow fluctuation, standard pressure vessel certification

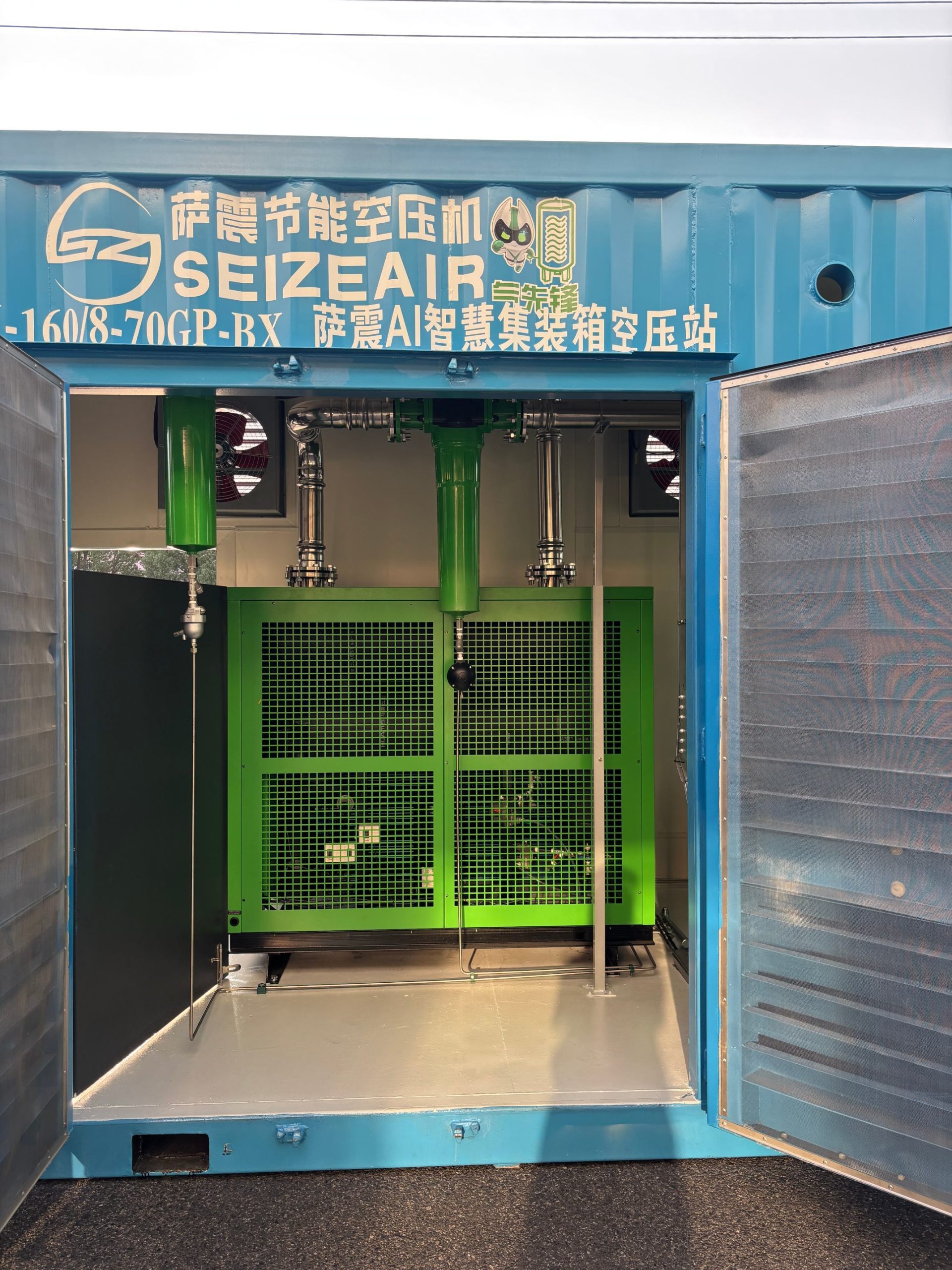

Refrigerated Dryer
Remove moisture in compressed air, dew point stably controlled within 2~10℃

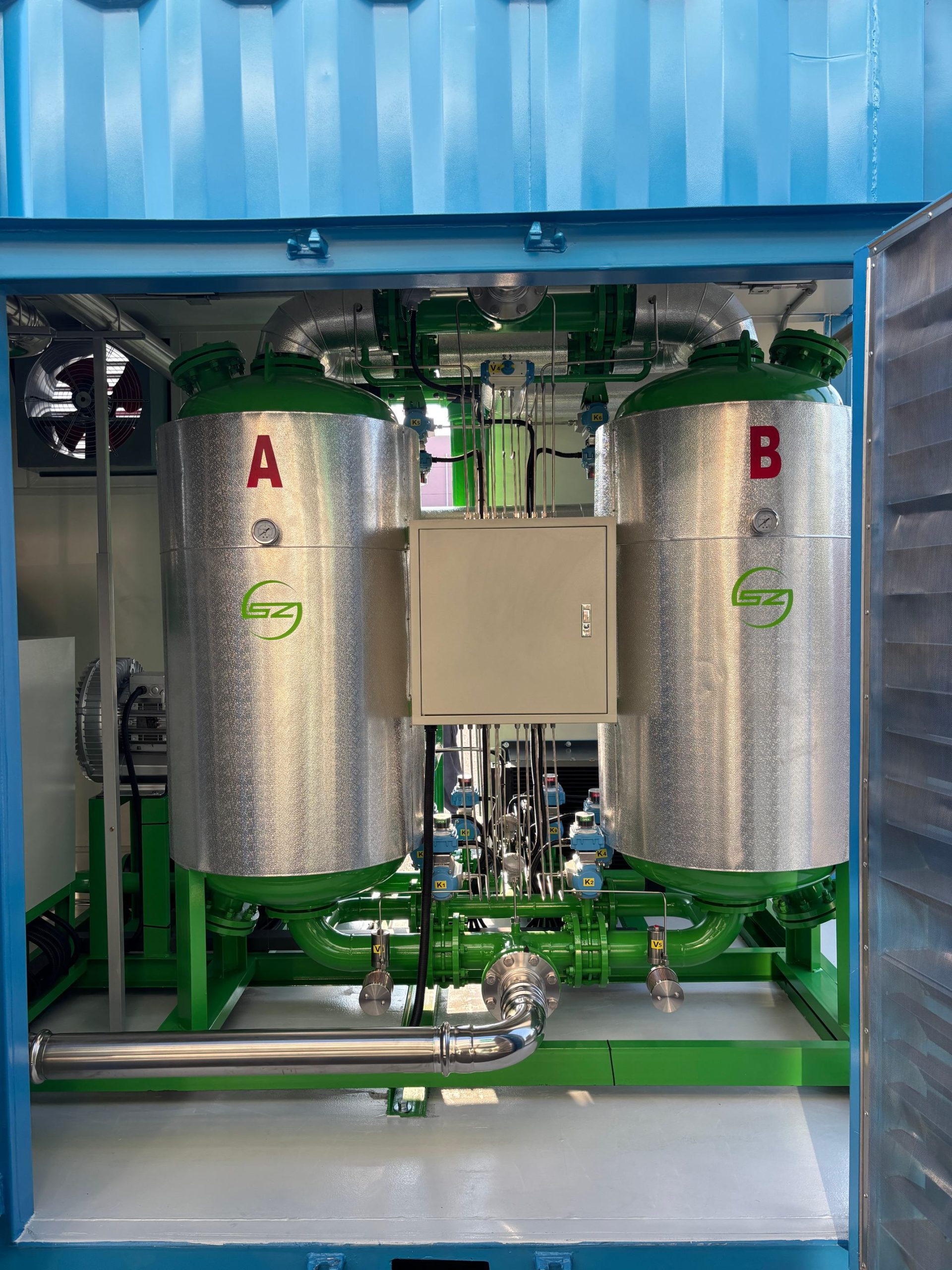

Adsorption Dryer
Ultra-low dew point treatment, suitable for food, pharmaceutical and high-precision industries
Multi-stage Precision Filter
Filter oil mist, dust particles, reach ISO8573 clean air standard
Waste Heat Recovery Device
Recycle host heat for hot water heating, improve overall energy utilization rate
Nitrogen Generator
Support integrated nitrogen making equipment to realize on-site nitrogen supply
Application Industries
Suitable for fixed factory gas supply and outdoor temporary engineering gas supply
Mining & Tunnel
Field mobile compressed air supply
Chemical Industry
Clean & stable process compressed air
Construction Works
On-site temporary air source station
New Energy PV
Long-term stable factory air supply
Technical Specifications
Standard technical parameters of integrated container air compressor station
Frequently Asked Questions
Answers to common questions from global purchasers
Does the container air station need concrete foundation?
Only hardened flat ground is required, no special civil foundation construction needed.
Can it run normally in extremely cold or high temperature outdoor environments?
Built-in heating and automatic heat dissipation system, stable operation within -40℃~55℃ ambient temperature.
Is internal configuration customizable?
Support customized pressure, flow, drying grade, waste heat recovery and nitrogen making integration scheme.
Custom Container Air Station Solution For Your Project
Tell your air demand, working pressure and site environment, we provide professional drawing scheme & formal quotation
